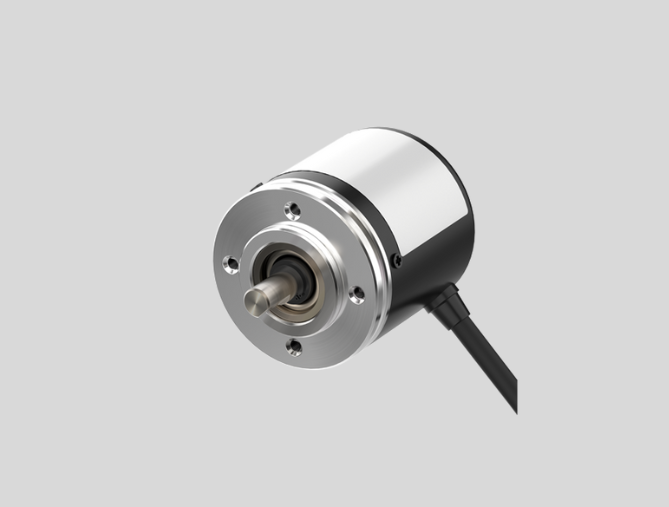

Autonics Encoders
Absolute & Incremental Rotary Encoder
A variety of Autonics Encoders are available from Temachines; these are necessary to attain accuracy in industrial settings. For applications requiring precise measurements, such as those in robotics or equipment, these encoders are ideal.
They are available in multiple varieties to suit a range of activities, ensuring that you consistently receive precise results.
They are available in multiple varieties to suit a range of activities, ensuring that you consistently receive precise results.
You can count on Autonics Encoder to provide dependable, long-lasting performance that will support the seamless operation of your company.
These Autonics Rotary encoders are a wise investment for any industry requiring precision control, including manufacturing, automation, and other related fields.

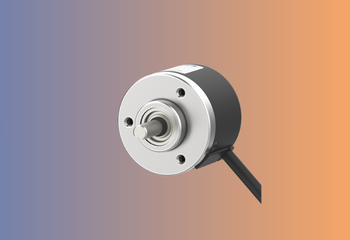

Autonics Encoders: E40S Series
- Resolution: 1 to 5,000 PPR.
- Control Output: Totem pole, NPN open collector, Voltage, Line driver.
- Output Phase: A, B, Z (varies by model).
- Response Speed: ≤ 1 ㎲.
- Max. Response Frequency: 300 kHz.
- Max. Allowable Revolution: 5,000 rpm.

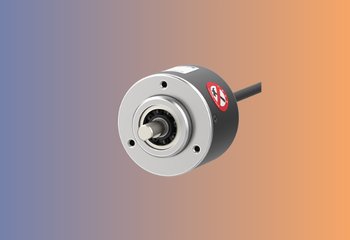

Autonics Rotary Encoder: E50S Series
- Resolution: 1 to 8,000 PPR.
- Control Output: Totem pole, NPN open collector, Voltage, Line driver.
- Output Phase: A, B, Z; A, A, B, B, Z, Z (varies by model).
- Response Speed: ≤ 1 ㎲.
- Max. Response Frequency: 300 kHz.
- Max. Allowable Revolution: 5,000 rpm.
- Cable Specifications: Ø 5 mm, 5-wire (8-wire for Line driver), 2 m length.

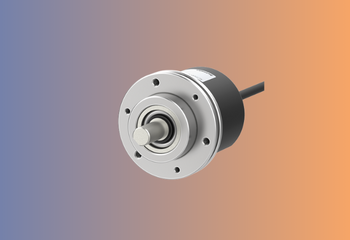

Rotary Encoder Autonics: E58SC Series
- Control Output: A totem pole, NPN open collector, Voltage.
- Output Phase: A, B, Z; A, A, B, B, Z, Z (varies by model).
- Response Speed: ≤ 1 ㎲.
- Max. Response Frequency: 300 kHz.
- Max. Allowable Revolution: 5,000 rpm.
- Protection Rating: IP50.
- Cable Specifications: Ø 5 mm, 5-wire (8-wire for Line driver), 2 m length.

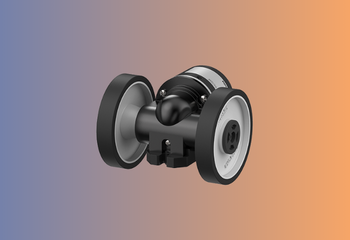

Encoder Autonics: ENC Series
- Control Output: A totem pole, NPN open collector, Voltage.
- Output Phase: A, B.
- Response Speed: ≤ 1 ㎲.
- Max. Response Frequency: 180 kHz.
- Max. Allowable Revolution: 5,000 rpm.
- Protection Rating: IP50.
- Cable Specifications: Ø 5 mm, 4-wire, 2 m length.

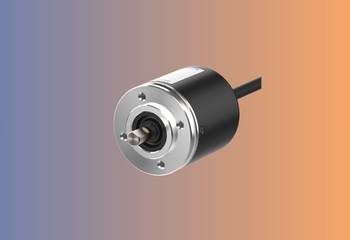

Autonics Absolute Encoder: EP50S Series
- Resolution: ≤ 1024 divisions.
- Control Output: NPN open collector, PNP open collector.
- Max. Response Frequency: 35 kHz.
- Max. Allowable Revolution: 3,000 rpm.
- Protection Rating: IP64.
- Connection: Axial cable type (cable gland).
- Cable Specifications: Ø 7 mm, 15-wire, 2m length.

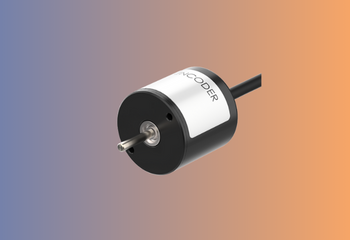

Autonics Rotary Encoders: E20S Series
- Control Output: NPN open collector, Voltage, Line driver.
- Output Phase: A, B, Z; A, A, B, B, Z, Z (varies by model).
- Response Speed: ≤ 1 ㎲.
- Max. Response Frequency: 100 kHz.
- Max. Allowable Revolution: 6,000 rpm.
- Connection: Axial/Radial cable type.
- Cable Specifications: Ø 3 mm, 5-wire (8-wire for Line driver), 1 m length.
