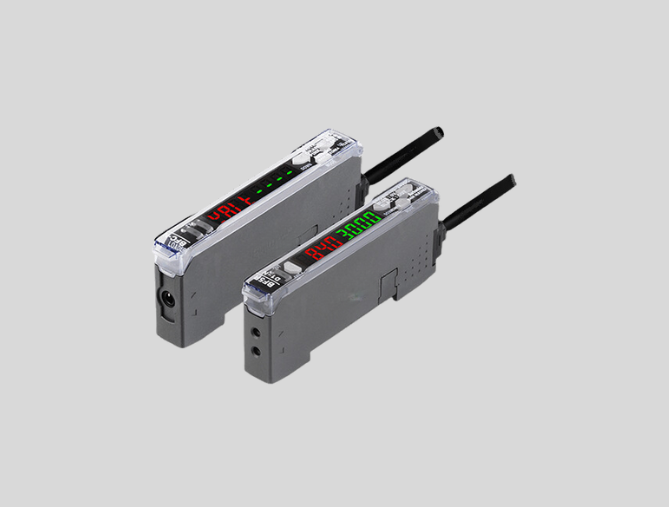

Autonics Fiber Optic Sensor
Cable & Amplifiers
The Autonics Fibre Optic Sensor line, which comprises the BFC, BF5, BFX, and BF3 series, is proudly presented by Temachines. Each series is made to precisely match into your industrial setup. These sensors are not only small and lightweight, but also extremely accurate instruments capable of picking up even the tiniest particles.
Our sensors are capable of handling items that move quickly or providing accurate readings in difficult situations. They’re a wise option for anyone wishing to improve their automation procedures because they’re simple to setup and operate. You can rely on Temachines to provide the greatest fibre optic sensor technology available.

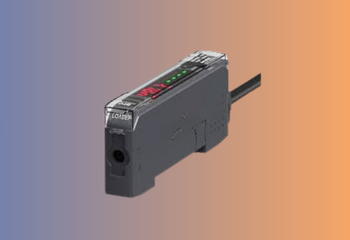

Autonics Fiber Optic Sensor: BFC Series
- Size: Slim design, 10 mm depth (W 10 × H 30 × L 70 mm).
- Compatibility: Connects up to 32 amplifiers (BF5 series).
- Indicators: TX (red), RX (green), LED display screen.
- Power Supply: 12-24 VDC ±10%.
- Output: NPN/PNP solid-state input models.
- Protection: IP40 rating.
- Connection: Connector cable, Ø 4 mm, 4-wire, 2 m.

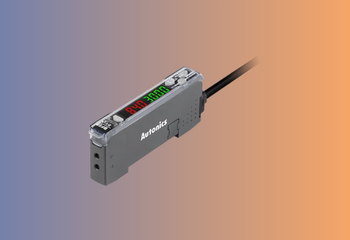

Fiber Optic Sensor Autonics: BF5 Series
- Display: Dual-display for incident light level and setting value (BF5-D).
- Resolution: High resolution of 1/10,000 for minute object detection.
- Light Sources: Red, green, blue LEDs with modulated wavelengths.
- Size: Slim design, 10 mm depth (W 10 × H 30 × L 70 mm).
- Power Supply: 12-24 VDC ±10%.
- Output: NPN/PNP open collector output.
- Connection: Connector cable, Ø 4 mm, 3-wire, 2 m.

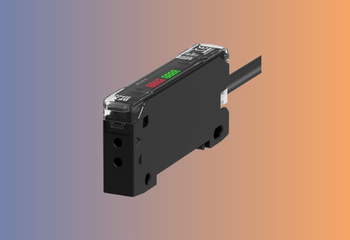

Autonics BFX Series
- Display: Dual-display, 7-segment LCD, 4-digit.
- Resolution: High, 1/10,000 for minute object detection.
- Response Time: Multiple modes (50 µs to 10 ms).
- Light Source: Red LED, modulated.
- Power Supply: 12-24 VDC ±10%.
- Protection: Reverse power, overcurrent, surge; IP40 rating.
- Connection: Connector cable, Ø 4 mm, 4-wire, 2 m.

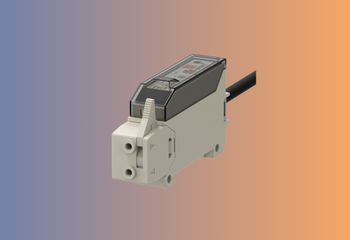

Autonics BF3 Series
- Mounting: Convenient DIN rail type.
- Response Time: Max. 1 ms.
- Operation Mode: Selectable Light ON / Dark ON.
- Power Supply: 12-24 VDC ±10%.
- Output: NPN/PNP open collector.
- Load Voltage: ≤ 30 VDC.
- Light Source: Red LED, 660 nm modulated.
- Size: Compact, with adjustable length fiber optic unit.
