Autonics Pressure Sensors
Transmitter Switch & Controller
Because they provide accurate and dependable pressure monitoring solutions, Autonics Pressure Sensors are an essential part of the automation industry. These sensors’ versatile design ensures efficiency in managing and monitoring pressure levels across a wide range of applications. They are the perfect option for a range of industrial purposes because to their cutting-edge technology and intuitive features. Autonics Pressure sensors yield reliable and consistent results for measuring gas, liquid, or oil pressure, which makes them an invaluable tool for companies like Temachines that concentrate on providing excellent automation solutions.

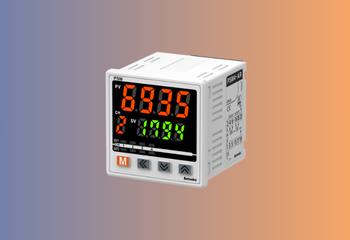

Autonics Pressure Sensors: PSM Series
- Channels: Display 8 (PSM8) or 4 (PSM4) channels.
- Input Range: 1-5 VDC, DC 4-20 mA (varies by model).
- Sensor Compatibility: Auto recognition for Autonics PSS series.
- Display Color: Settable PV display color (red/green).
- Outputs: Individual output indicators for each channel.
- Connection: Easy wiring with sensor connectors (CNE).
- Power Supply: 12-24 VDC ±10%.

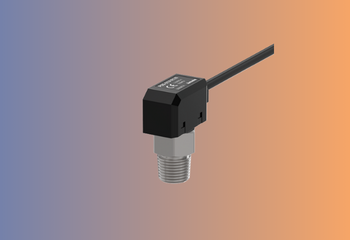

Autonics Pressure Transmitter: PSS Series
- Size: Compact, Standard [W 11.8 x H 29.3 x L 24.8 mm], Optional [H 31.3 ~ 32.8 mm].
- Pressure Range: -101.3 to 1000 kPa (Negative, Positive, Compound).
- Output: Analog (1-5VDC, DC 4-20mA).
- Power Supply: 12-24 VDC ±10%.
- Design: Rectangular, includes pressure port.
- Connectivity: Compatible with HMIs, PCs, PLCs.

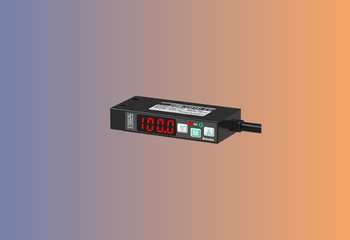

Autonics Pressure Switch: PSB Series
- Display: Bright red LED, 9.5mm characters.
- Resolution: High, adjustable for various pressure types.
- Output Modes: Multiple, including hysteresis and sensitivity adjustment.
- Response Time: Adjustable (2.5ms to 500ms).
- Analog Output: 1-5VDC, with scale function.
- Functions: Zero-point adjustment, peak/low value hold.
- Design: Compact, connector type (PSB-C) available.

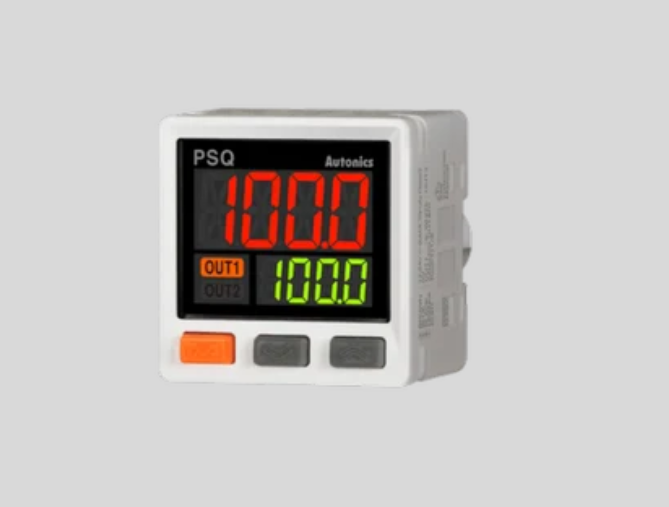

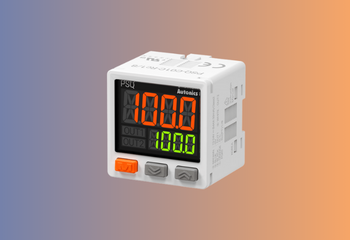

Autonics Pressure Controller: PSQ Series
- Display: Dual digital, 12-segment LCD, 3-color main display.
- Measurement Range: -100.0 to 1000 kPa.
- Output: NPN/PNP open collector, analog (1-5VDC, DC 4-20mA).
- Resolution: 0.1kPa / 1kPa.
- Connectivity: One-touch connector.
- Security: Password lock for settings.

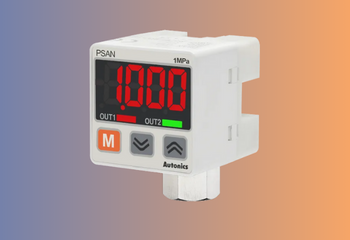

Pressure Sensor Autonics: PSAN Series
- Measurement: Gas, liquid, oil pressure (except corrosive substances).
- Display: Digital, with various pressure types.
- Auto Shift: Adjusts pressure level with original pressure changes.
- Functions: Zero-point adjustment, peak value monitoring, chattering prevention.
- Connectivity: One-touch connector for easy wiring.
- Material: Stainless steel 304/316L compatibility.
