Autonics Proximity Sensors:
Capacitive Proximity Sensors
Temachines offers a variety of Autonics Proximity Sensors, perfect for different industrial uses. Our selection includes the PR, PRD, PRFD, CR, PET18-5, and PS series, all known for their accuracy and dependability. These sensors are excellent at identifying metal and non-metal objects from different distances and sizes. They are reliable and precise, making them versatile for many uses.
Key features include options for both flush and non-flush mounting. Our sensors are excellent for controlling, positioning, or measuring distance, making them a reliable option for your automation needs.

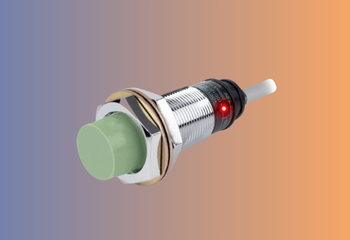

Autonics Proximity Sensors PR Series
- Sensing Performance: Sensing distances (1.5 mm to 15 mm).
- Installation: Flush and non-flush installation options.
- Size Range: Diameters from Ø 8 mm to Ø 30 mm.
- Response Speed: Frequencies up to 1.5 kHz.
- Connection: M12 Connector
- Indication: Integrated operation indicator. (red)

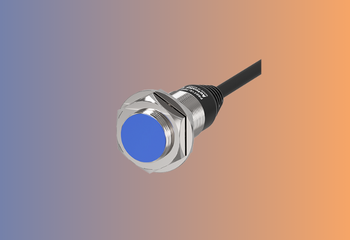

Autonics Inductive Proximity Sensor: PRD Series
- Sensing Performance: Sensing distances range from 2 mm to 25 mm.
- Installation Options: Available in both flush and non-flush types.
- Size Variability: Sensing side diameters from Ø 8 mm to Ø 30 mm.
- Response Frequency: Ranges from 100 Hz to 1 kHz.
- Connection: Equipped with M12 Plug connectors.
- Power Supply: 12 – 24 VDC operating voltage

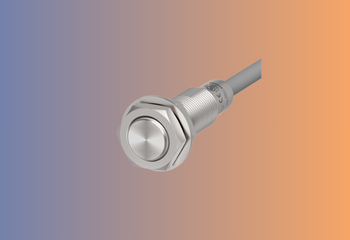

Autonics Proximity: PRFD Series
- Sensing Performance: Sensing distances from 2 mm to 12 mm.
- Size Options: Diameters ranging from Ø 8 mm to Ø 30 mm.
- Response Speed: Frequency response from 50 Hz to 150 Hz.
- Connection Type: M12 connectors.
- Indicators: Stability (green) and operation (red) indicators.
- Power Supply: 12 – 24 VDC, ripple P-P ≤ 10%.

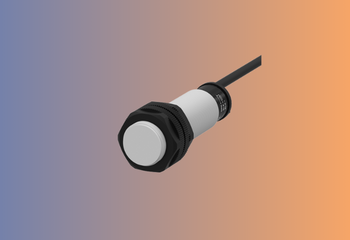

Autonics Capacitive Proximity Sensor: CR Series
- Sensing Range: 8 mm to 15 mm sensing distances.
- Design: Sensing side diameters of Ø 18 mm and Ø 30 mm.
- Response Frequency: 50 Hz for DC 3-Wire, 20 Hz for AC 2-Wire
- Protection: Surge protection, with IP66/IP65 protection structure.
- Power Supply: 12 – 24 VDC for DC, 100 – 240 VAC for AC models.
- Connection: Cable types with Ø 4 mm and Ø 5 mm options, 2 m length.

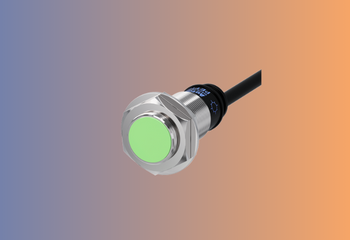

Proximity Switch Autonics– PET18-5 Series
- Performance: 5 mm transmitting distance, ≤ 1 ms response time.
- Setting Range: 1 to 4.5 mm.
- Indicator: Operation indicator (red).
- Durability: Operates in -25 to 70 ℃, IP67 rated.
- Connection: Ø 5 mm, 2-wire, 2 m cable.
- Material: Nickel-plated brass, PBT, PVC cable.

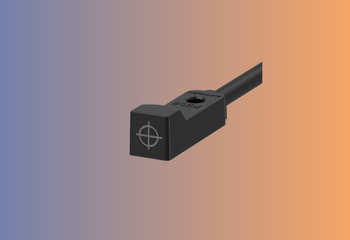

Autonics Proximity Switch – PS Series
- Sensing Range: Sensing distances from 2.5 mm to 30 mm.
- Design: Sensing side lengths from 8 mm to 50 mm.
- Response Speed: Response frequencies from 50 Hz to 1 kHz.
- Output: Control output up to 200 mA, residual voltage ≤ 1.5 V.
- Power Supply: 12 – 24 VDC, operating voltage range 10 – 30 VDC.
- Connection: Cable types ranging from Ø 2.5 mm to Ø 5 mm, up to 2 m length.
