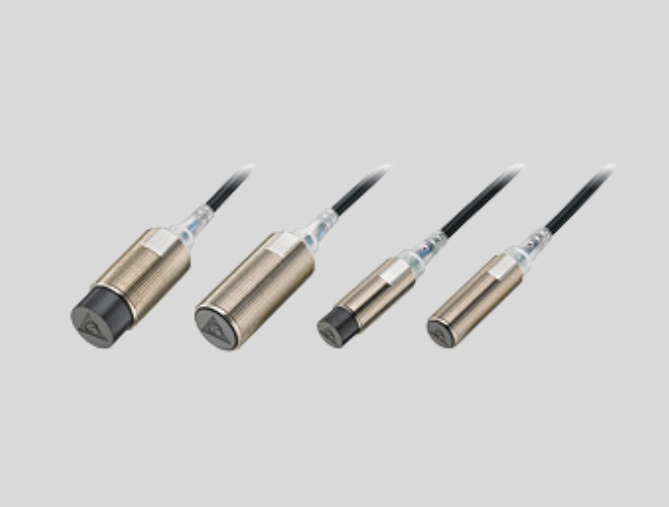

Delta Proximity Sensor

Delta Proximity Sensors

A variety of Delta Proximity Sensors are available from Temachines, including capacitive and inductive proximity switches. Standard M12 and M18 industry designs with an extended detection range are available from Delta Inductive Sensors, simplifying and expediting installation.

Temachines is your go-to source for all your Delta Proximity sensor needs in Bangalore, Chennai, Hyderabad, Coimbatore, and throughout India, offering pricing that are competitive with authorised Delta electronic dealers.

Specifications:

Sensing distance: 2 mm ± 10%, 4 mm ± 10%, 5 mm ± 10%, 8 mm ± 10%,12 mm ± 10%
Differential Travel: max. 10% of sensing distance
Detectable Object: Ferrous metal
Power Supply Voltage (Operating Voltage Range): 12 to 24 VDC, ripple (p-p): max. 10%
Current Consumption: 15 mA max
Output:
– Load current: 200 mA max
– Residual voltage: 2V max. (load current: 200 mA, cable length: 2 m)
Indicators: Operation indicator (red)
Operation Mode (with Sensing Object Approaching): NPN: NO / NC; PNP: NO / NC
Ambient Temperature Range:
– Operating: Operating: -25 ~ +70 ºC / storage: – 40 ~ 80 ºC (with no icing or condensation)
Connection Method: 3 wires 2m cable and M12 connector with 200mm cable

Applications:

Food and beverages, packaging, pharmacy, electronic component equipment, textile, rubber and plastics, warehouses, and machine tool industries.
