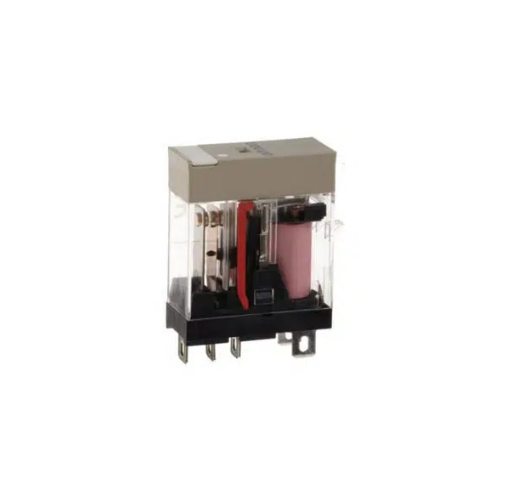

G2R-1-SN 230VAC (S): Omron 230V Relay in Chennai
The technical specifications for the Omron 230V Relay G2R-1-SN 230VAC (S) are:
Mounting Method: With plug-in socket
Coil Voltage: 230 V
Rated Carry Current: 10 A
Operation Voltage: AC
Contact Material: AgSnIn
Contact Description: SPDT
Terminal: Plug-in
Power Consumption: 0.9 VA at 60 Hz
Technical Specifications:
| Mounting method | With plug-in socket |
| Usage | General purpose, Interface |
| Must operate voltage | 80% max |
| Must release voltage | 30% max |
| Max. voltage | 110% |
| Coil resistance | 27,172 Ω |
| Poles | 1 |
| Coil voltage | 24 V |
| Rated carry current | 10 A |
| Operation voltage | AC |
| Contact material | AgSnIn |
| Contact description | SPDT |
| Features | LED, Transparent case, With mechanical indicator |
| Terminal | Plug-in |
| Power consumption | 0.9 VA at 60 Hz |
| Max. operating frequency | Mechanical: 18,000 operations/hr Electrical: 1,800 operations/hr (under-rated load) |
| Dielectric strength | 5,000 VAC, 50/60 Hz for 1 min between coil and contacts; 1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity |
| Vibration resistance | Destruction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) Malfunction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude) |
| Shock resistance | Destruction: 1,000 m/s2 Malfunction: 200 m/s2 when energized; 100 m/s2 when not energized |
| Ambient temperature | Operating: –40°C to 70°C (with no icing or condensation) |
| Ambient humidity | Operating: 5% to 85% |
| Weight | Approx. 20 g |
