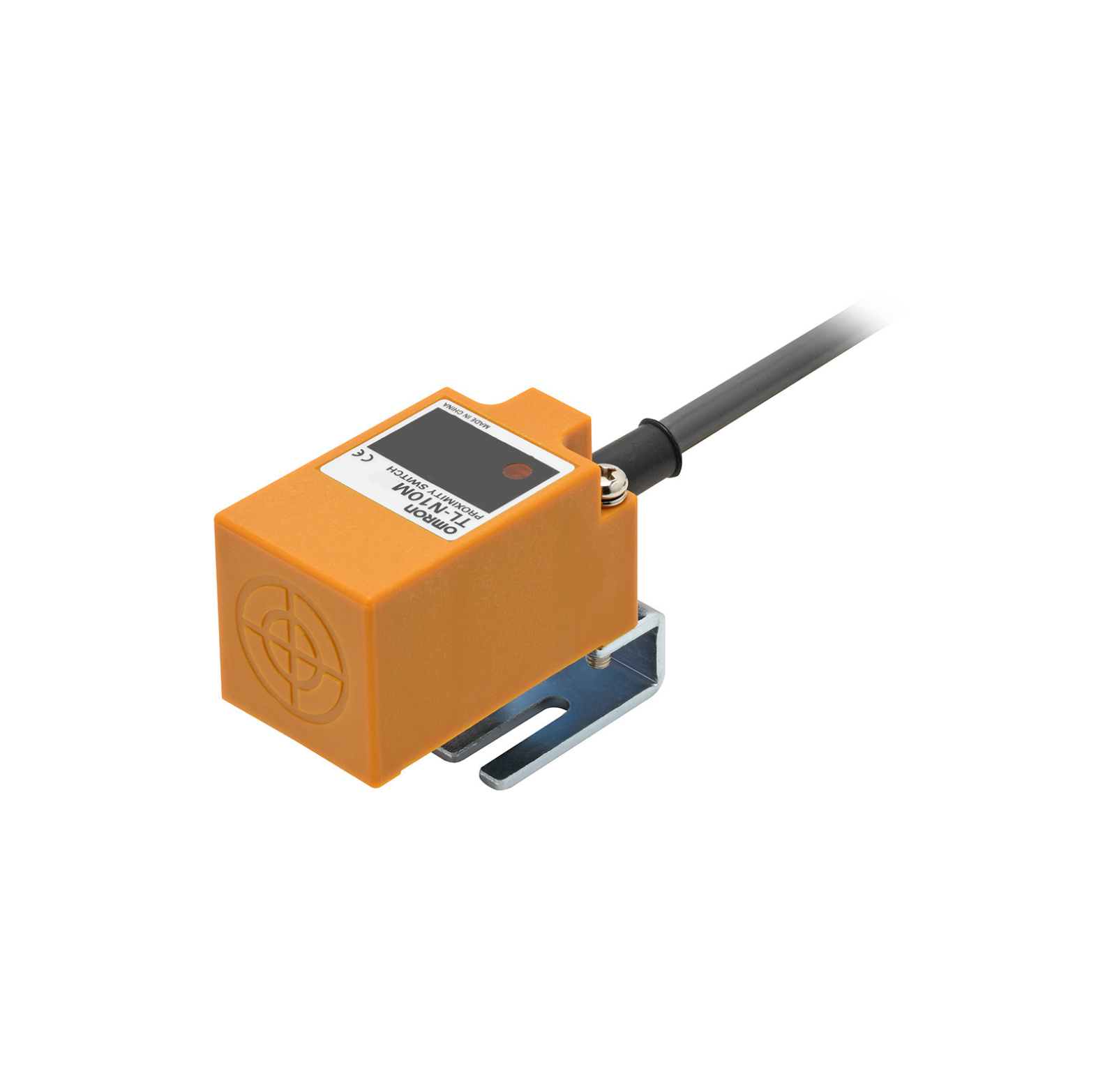

Omron TL-N10ME2 2M: 12 Volt Proximity Switch
Omron TL-N10ME2 2M 12 Volt Proximity Switch Technical Specifications are:
Sensing head size: 30 mm x 30.5 mm x 52.5 mm
Shape: Rectangular type
Mounting type: Unshielded
Sensing Distance: 10 mm
Power Source: DC 3-wire models
Connection Method: Pre-wired 2M Cable
Output Configuration: NPN
Operation mode: NC
Power Supply Voltage: 12 to 24 VDC
Technical Specifications:
| Sensing head size | 30 mm x 30.5 mm x 52.5 mm |
| Type | Non-flush | Unshielded |
| Shape | Rectangular type |
| Sensing Distance | 10 mm |
| Power Source | DC 3-wire models |
| Connection Method | Pre-wired 2M Cable |
| Output Configuration | NPN |
| Operation mode | NC |
| Differential distance | 15% max. of sensing distance |
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard Sensing Object | Iron, 40 × 40 × 1 mm |
| Power Supply Voltage | 12 to 24 VDC ripple (p-p) 10% max. |
| Response frequency | 500 Hz (Average value) |
| Indicator | Detection indicator (red) |
| Current consumption | at 12 VDC: 8 mA max. at 24 VDC: 15 mA max. |
| Protective circuit | Reverse polarity protection Surge suppressor |
| Ambient temperature (Operating) | -25 to 70 ℃ |
| Ambient humidity (Operating) | 35 to 95% RH |
| Voltage influence | ±2.5% max. of sensing distance at the rated voltage in the rated voltage ±10% range |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Material Case | Heat-resistant ABS resin |
