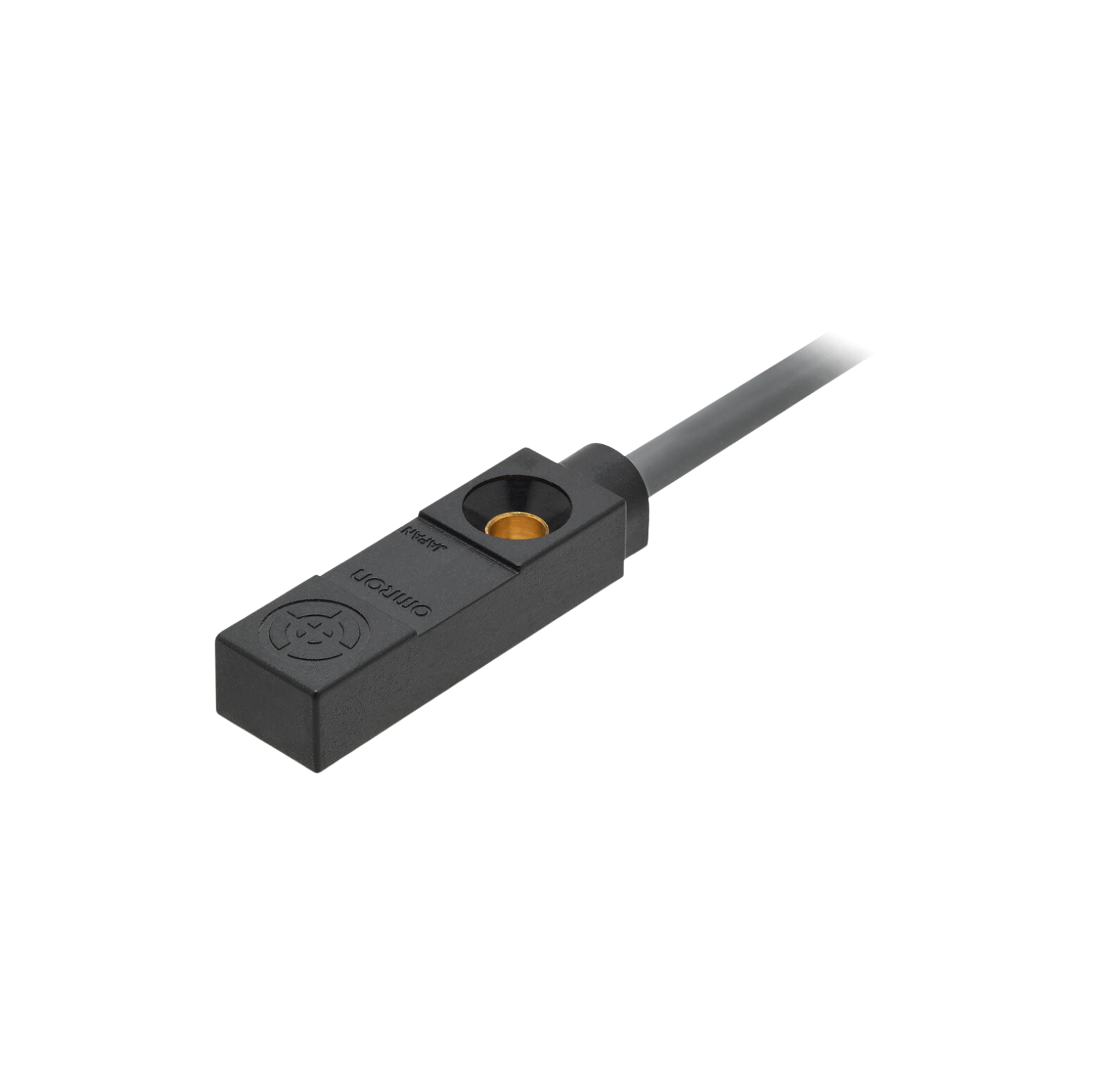

Omron TL-W1R5MC1 2M 1.5 mm Proximity Sensor
The technical specifications for the Omron 1.5 mm Proximity Sensor TL-W1R5MC1 2M:
- Sensing head size: 8 mm x 5.5 mm x 25 mm
- Shape: Flat type
- Mounting type: Unshielded
- Sensing distance:1.5 mm
- Power source: DC Three-wire models
- Connection method: Pre-wired models (2 m)
- Operation mode: NO
- Output type: NPN open collector
- Power supply voltage: 12 to 24 VDC
Technical Specifications:
| Sensing head size | 8 mm x 5.5 mm x 25 mm |
| Type | Shielded |
| Shape | Flat type |
| Sensing Distance | 5 mm |
| Power Source | DC Three-wires models |
| Connection Method | Pre-wired models (2 m) |
| Operation mode | NO |
| Output type | NPN open collector |
| Differential distance | 10% max. of sensing distance |
| Sensing object | Ferrous metal (Sensitivity lowers with non-ferrous metals.) |
| Standard Sensing Object | Iron 8 x 8 x 1 mm |
| Power Supply Voltage | 12 to 24 VDC ripple (p-p) 10% max. |
| Response frequency | 1 kHz (Average value) |
| Indicator | Detection indicator (red) |
| Protective circuit | Reverse polarity protection Surge suppressor |
| Ambient temperature (Operating) | -25 to 70 ℃ |
| Ambient humidity (Operating) | 35 to 95% RH |
| Voltage influence | ±2.5% max. of sensing distance at rated voltage in the rated voltage ±10% range |
| Degree of protection | IEC: IP67 Company standard: Oil-proof |
| Material | Case: Heat-resistant ABS resin Sensing surface: Heat-resistant ABS resin |
